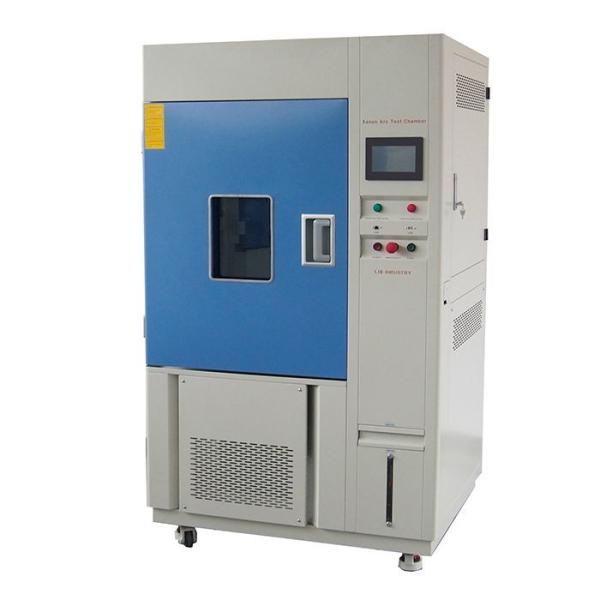

Description of Xenon Climate Testing Machine
ISO17025 280nm xenon climate testing machine can emulate the effect of sunshine,while water spray system can emulate the effects of rain and dew. During the test, radiation energy and temperature are controllable. A typical test cycle generally carries out under strong irradiation of Xenon light and periodic precipitation. These tests generally appliedin the fields of paint and coatings,automotive industry, plastic, wood, glue,etc
Parameters of Xenon Climate Testing Machine
| Name | ISO17025 280nm Xenon Climate Testing Machine |
| Model | XL-500 |
| Internal dimensions D*W*H | 500*600*700 mm |
| Overall dimensions D*W*H | 1200*1150*1700 mm |
| Irradiation Source | 1 piece of 1500 W air cooled xenon lamp with inner quartz and outer borosilicate filter |
| Irradiance Range | 100~1200 W/㎡ |
| Bandwidth Measurement | 280nm~800nm |
| Chamber Temperature Range | Ambient ~100℃±2°C |
| Black Panel Temperature | BPT 35 ~85℃±2°C |
| Relative Humidity Range | 50~98% R.H±5% RH |
| Water Spray cycle | 1～9999H59M, adjustable |
| Controller | programmable color display touch screen controller, PC Link, R-232 interface |
| Radiometer | Tolerance: ±5% |
| Heating system | Nichrome heater |
| Cooling system | Mechanical compression refrigeration system |
| Refrigerating unit | French TECUMSEH compressor |
| Humidification system | External isolation, stainless steel surface evaporation humidifier |
| Air circulation | Centrifugal wind fan |
| Water supply system | Automatic water supply; Water purification system |
| Interior material | SUS304 stainless steel |
| Exterior material | Steel Plate with protective coating |
| Thermal insulation | Polyurethane foam |
| Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing |
| Power Supply | AC380V 50HZ |

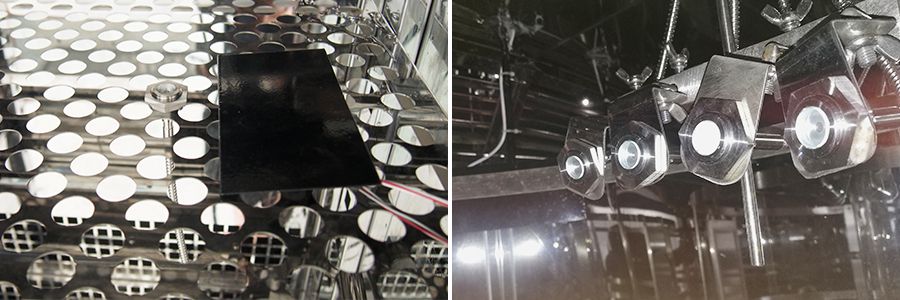

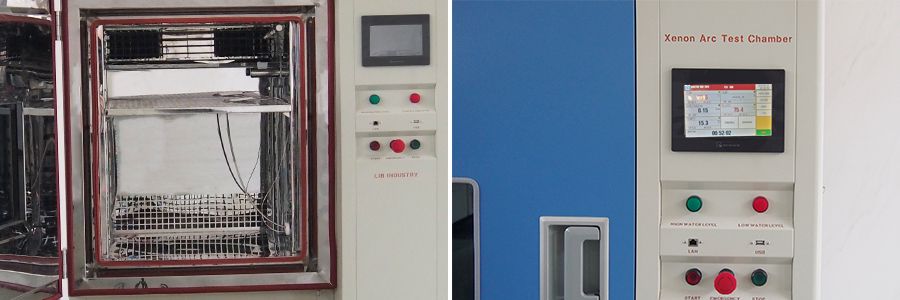

Details of Xenon Climate Testing Machine
 |
| Workroom | Programmable controller |
 |
| Black Panel Thermometer | Radiometer |
Performance of Xenon Climate Testing Machine
1.Full-spectrum xenon arc lamp
2.Temperature and humidity monitoring and control
3.Environmental xenon arc test device equip quartz filter
4.ASTMG155 accelerated xenon equipment equip with the multi-direction nozzle for rain test
Applications of Xenon Climate Testing Machine
280nm xenon solar test machine is used in different industries such as plastic, paint, dyeing, automobile, motorcycle, petrochemical, textile, leather products etc.
